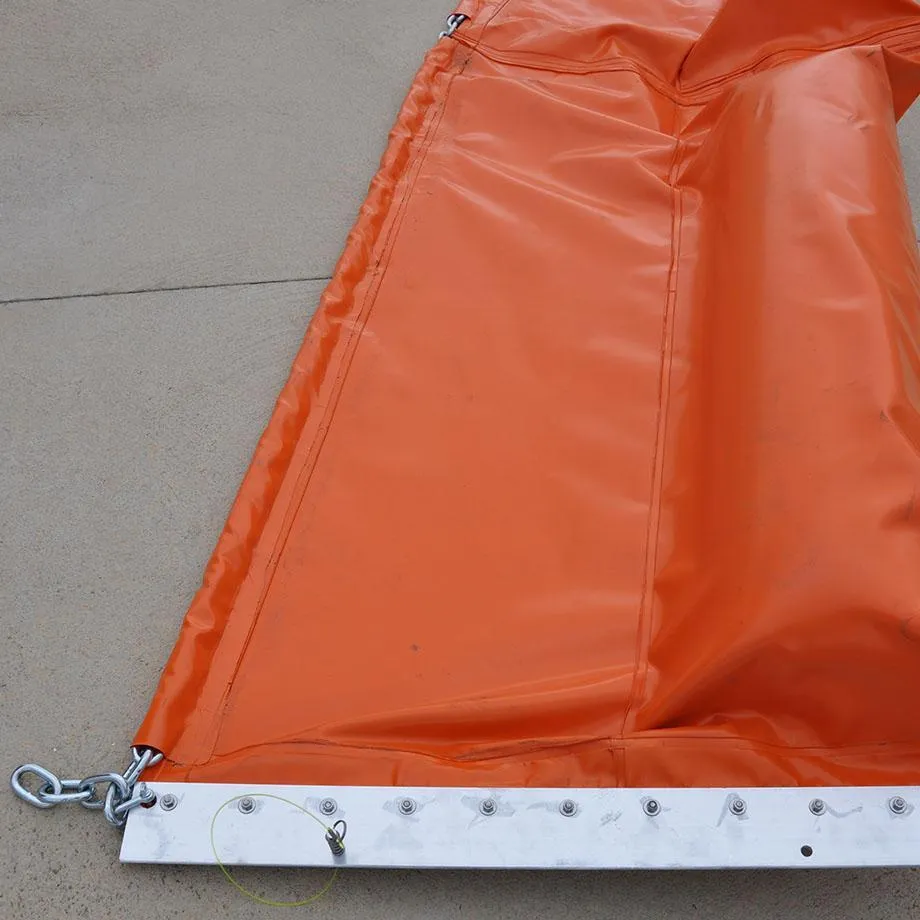

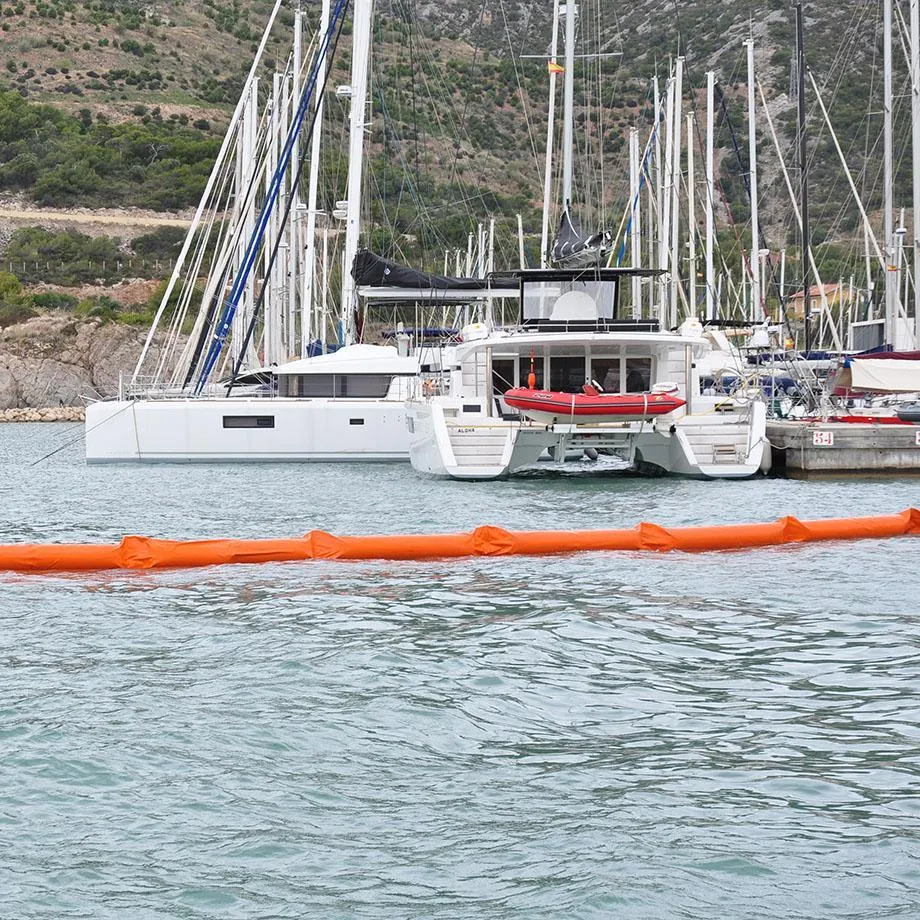

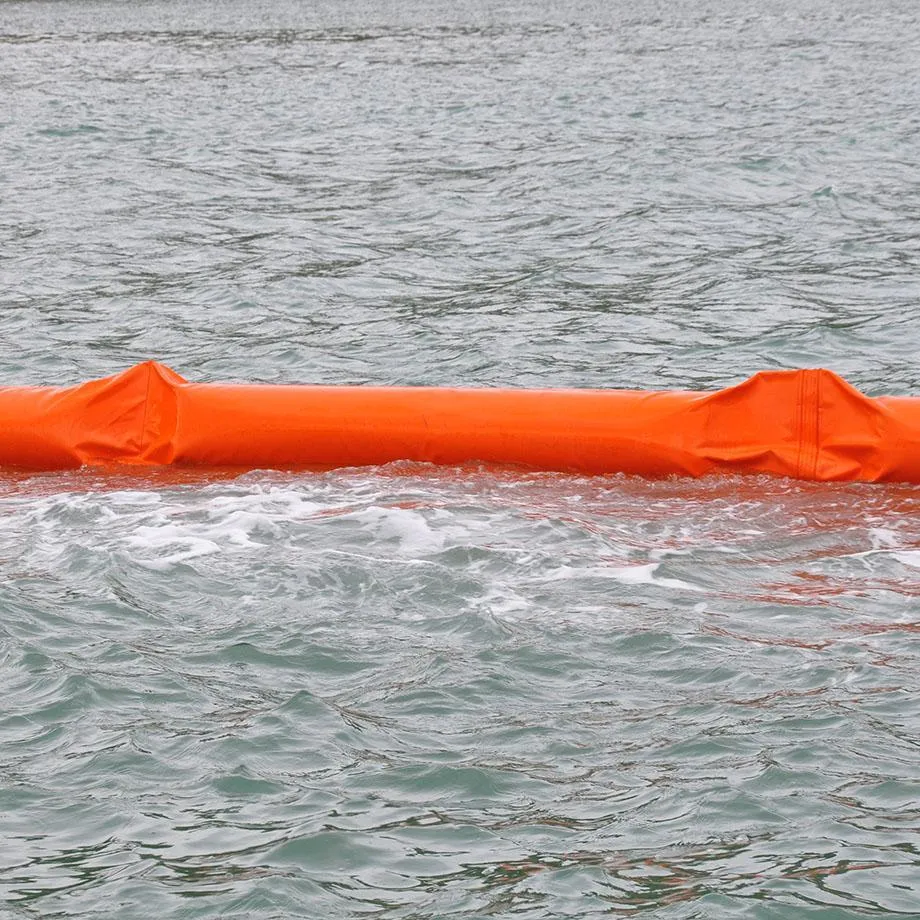

With high buoyancy to weight ratio this containment boom has have a good response to wave action making it useful in inland or sheltered water such as within a harbour. The range has excellent UV resistance and chemical resistance to acids, alkalis, solvents and hydrocarbons. We can manufacture different sizes and material types (PU and Neoprene) please contact us to discuss your application.
| Freeboard: | 350mm |
| Draft: | 500mm |
| Overall: | 850mm |
| GSM PVC | 1450 |
| Section length: | 25m |
| Buoyancy to weight: | 6:1 |
| Weight: | 5.4kg per metre |
| Packaging volume: | 1.20m³ per 25m |
| Ballast: | 10mm hot dip galvanised chain |
| Fabric: | Orange or yellow 850gsm woven polyester scrim coated with PVC |
| Breaking Strength: | ASTM D 5035 (lengthwise & width wise 300kgf/5cm) |
| Operational temperature: | 0°C to 80°C |
Note:
Freeboard = vertical height of the product above the water
Draft = depth of the product below the water
